VIDEOCAST 4K UHD NDI VC201 PTZ Video Camera

Technical Specifications

• Image Sensor: SONY 1/2.8” Progressive CMOS, 8.50 Megapixels
• Resolution: 4K (3840x2160) at 30fps
• Zoom: 20x optical, 16x digital

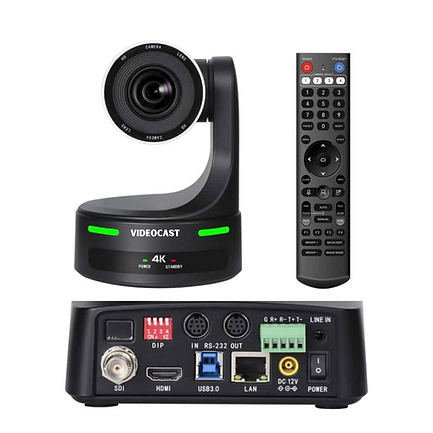

• Outputs: HDMI, 3G-SDI, USB3.0, LAN (POE optional)
• Video Compression: YUY2, H.265, MJPG, H.264
• Protocols: ONVIF, SRT, RTSP, RTMP, RTMPS, NDI®|HX2
• Control Protocols: VISCA (VISCA Over IP), PELCO P/D
• Low-Light Performance: S/N Ratio > 55dB
• Noise Reduction: 2D & 3D digital noise reduction
• Installation Options: Wall, ceiling, or desktop

  Applications

• Live Streaming: Perfect for high-quality live streaming of events, webinars, and conferences.
• Video Conferencing: Seamlessly integrates with conferencing systems for crystal-clear video communication.
• Education: Ideal for remote learning, lecture capture, and online teaching setups.
• Worship Services: Enhances live broadcasting and recording of worship sessions.
• Broadcasting: Designed for professional-grade broadcasting environments.
• Corporate Events: Perfect for virtual meetings, presentations, and training sessions.

  The VIDEOCAST 4K UHD NDI VC201 PTZ Video Camera is the ultimate choice for professionals who demand versatility, quality, and reliability. Whether it’s for live events, classrooms, or studios, this camera is built to deliver top-notch performance every time.

FAQ for VIDEOCAST 4K UHD NDI VC201 PTZ Camera

1. What is the resolution of the VIDEOCAST VC201 PTZ camera? The VIDEOCAST VC201 supports up to 4K Ultra HD resolution (3840x2160) at 30fps for exceptional image clarity and detail. 2. What type of sensor does the camera use? The camera is equipped with a SONY 1/2.8” Progressive CMOS sensor with 8.50 megapixels, ensuring sharp and vibrant image quality. 3. What zoom capabilities does the camera offer? The camera features a 20x optical zoom and 16x digital zoom, making it suitable for capturing wide-angle and close-up shots. 4. What output interfaces are available? The camera supports multiple output options, including:

• HDMI
• 3G-SDI
• USB3.0
• LAN (with optional POE support)

5. Does the camera perform well in low-light conditions? Yes, the camera features a high S/N ratio CMOS sensor and 2D & 3D digital noise reduction, ensuring clean and clear images even in ultra-low-light environments. 6. What video compression formats are supported? The camera supports multiple video compression formats, including YUY2, H.265, MJPG, and H.264. 7. What network protocols are compatible with the camera? The camera supports a wide range of network protocols, including:

• ONVIF
• SRT
• RTSP
• RTMP
• RTMPS
• NDI®|HX2

8. What control protocols does the camera support? The camera supports the following control protocols:

• VISCA (including VISCA Over IP)
• PELCO P/D
• NDI

It can also automatically detect protocols for seamless integration. 9. Does the camera support IR pass-through? Yes, the camera can receive infrared signals from its remote control and transmit them to a video conferencing terminal through the VISCA IN port. 10. Does the camera have a tally display feature? Yes, the camera includes a front tally status display, making it suitable for broadcast-level applications. 11. What are the installation options for this camera? The camera can be installed using various methods, including:

• Wall mounting
• Ceiling mounting
• Desktop placement

12. Is POE (Power Over Ethernet) supported? Yes, POE support is available as an optional feature, simplifying installation by eliminating the need for separate power cables. 13. What are the typical applications of this camera? The camera is ideal for:

• Live streaming
• Video conferencing
• Remote learning and online teaching
• Worship services
• Corporate events and presentations
• Professional broadcasting

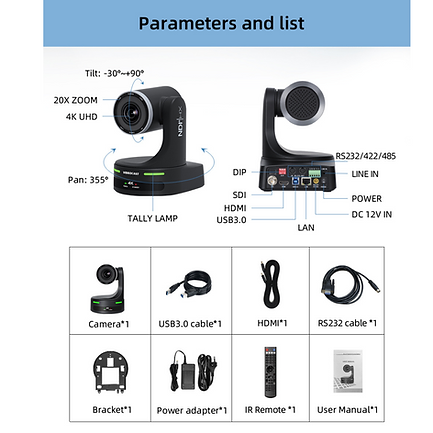

14. What makes this camera suitable for professional environments? The VIDEOCAST VC201 offers 4K resolution, multiple output options, advanced zoom capabilities, low-light performance, and a wide range of supported protocols, making it a versatile and reliable choice for professional use cases. 15. What is included in the camera package? The package typically includes:

• VIDEOCAST 4K UHD NDI VC201 PTZ Camera
• Remote control
• Power adapter
• Mounting accessories (optional, depending on the package)
• User manual

For specific details, please confirm with your distributor or sales representative. 16. Does the camera come with NDI support? Yes, NDI®|HX2 is available with VIDEOCAST 4K UHD VC201 PTZ Video Camera. 17. What is the warranty period for the camera? The warranty terms may vary by region or distributor. Please contact your sales representative or distributor for warranty details. If you have additional questions, feel free to reach out to our support team for assistance!
